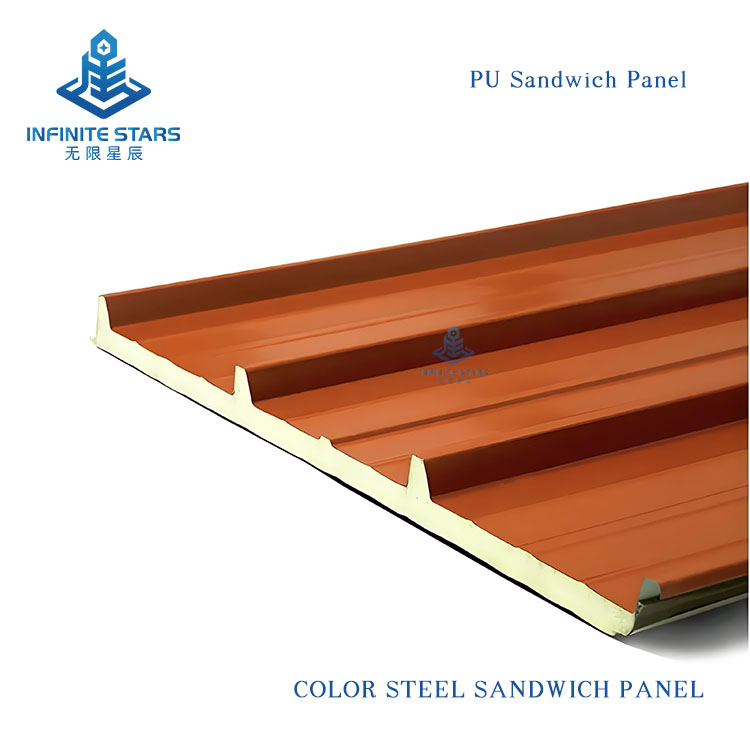

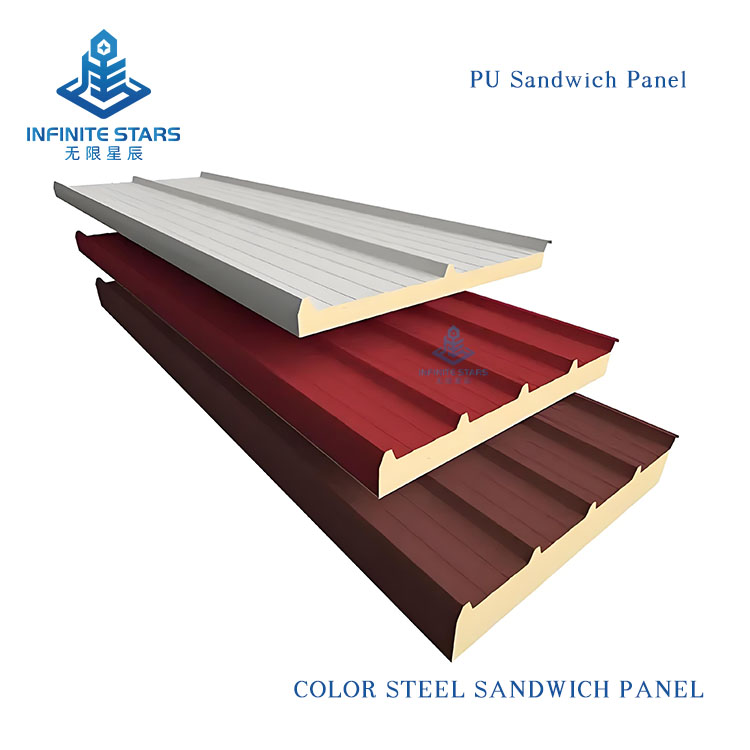

Outdoor Pu Foam Sandwich Wall Panels Waterproof For Building House
Unrivaled Insulation Efficiency: They offer exceptional insulation, minimizing temperature fluctuations and maximizing energy efficiency, thereby reducing operational costs.
Robust Yet Lightweight Construction: These panels combine remarkable strength with a lightweight design, simplifying installation and reducing the need for additional support structures.
Durability for Longevity: Engineered for durability, PU foam panels can withstand the harsh conditions of cold storage, ensuring reliable performance over extended periods.
Advanced Fire Safety Measures: Equipped with fire-retardant properties, they enhance overall safety by reducing the risk of fire and limiting the spread of flames in the event of an incident.
Moisture-Control Capabilities: Their closed-cell structure acts as an effective moisture barrier, preventing condensation and maintaining a dry environment that is crucial for preserving the quality of stored items.
| Parameter Category | Parameter Details |
| Size Specifications | |
| Length x Width (mm) | 3000×1000, 2400×1200, 1200×600, 600×600 (Other sizes available) |
| Thickness (mm) | 20, 30, 50, 75, 100 (Other thicknesses available) |
| Physical Properties | |
| Density (g/cm³) | 1.15 (Standard PU), 1.25 (High Abrasion Resistance PU) |
| Hardness (Shore Hardness) | 90A (Standard) |
| Tensile Strength (MPa) | 30 (Standard PU), 53 (High Abrasion Resistance PU) |
| Elongation at Break (%) | 445 (Standard PU), 548 (High Abrasion Resistance PU) |
| Akron Abrasion Loss (cm³/1.61km) | 0.029 (Standard PU), 0.014 (High Abrasion Resistance PU) |
| Operating Temperature (℃) | -35~50 |
| Mechanical Properties | |
| Bearing Capacity (Mpa) | 10.5 (Approx. 25% compression) |
| Tear Resistance (kN/m) | 65 (Standard) |
| Fire Resistance | |
| Fire Rating | Class 1 |
| Others | |
| Application Fields | Construction, Cold Chain Logistics, Medical, Electronics, Apparel, etc. |
